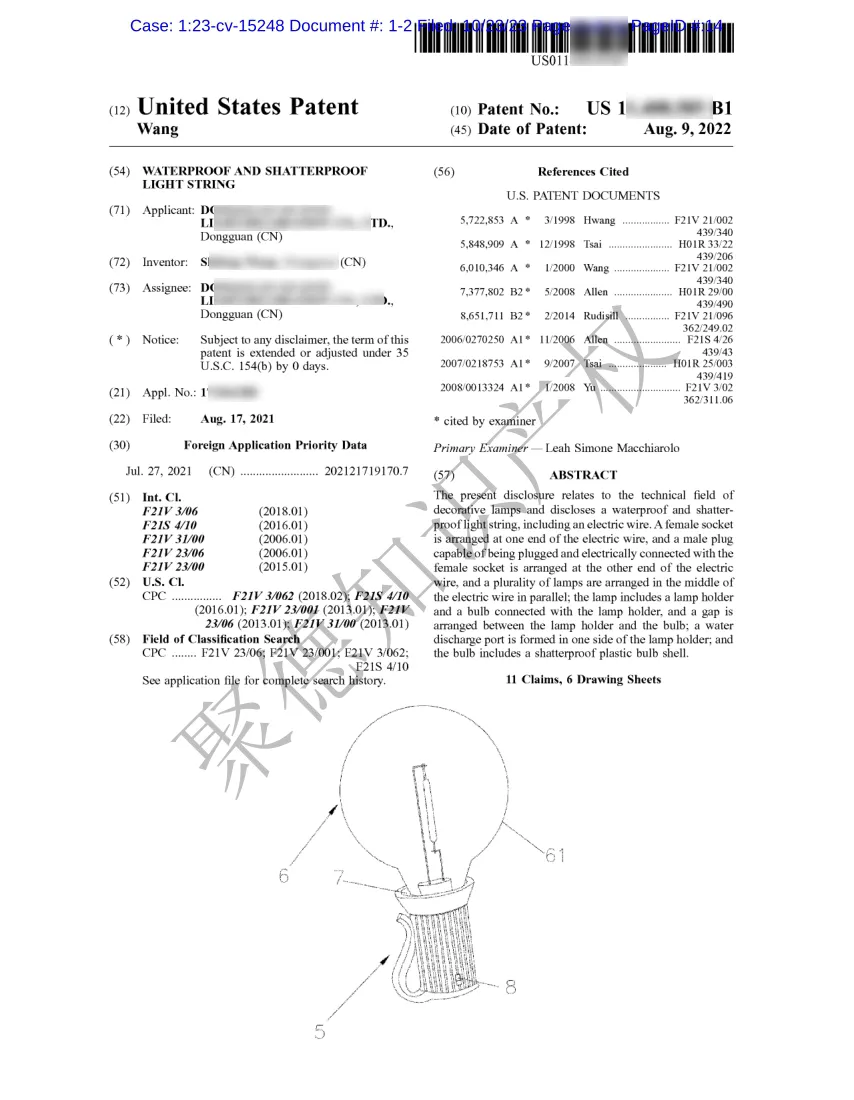

国人防水防摔灯泡发明专利起诉侵权，聚德工程师分享规避之道

Claim1

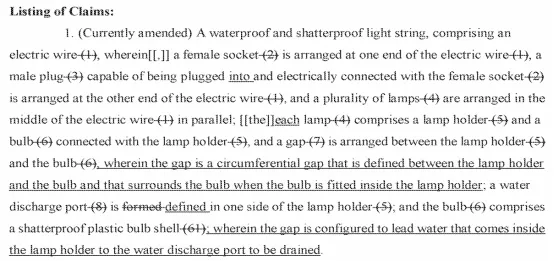

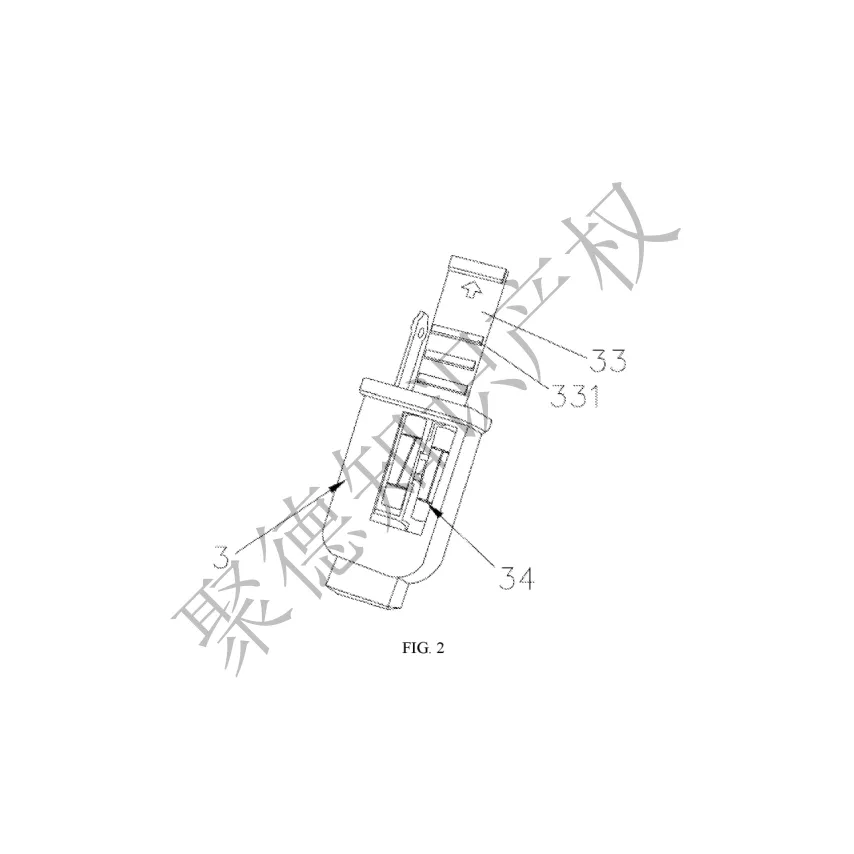

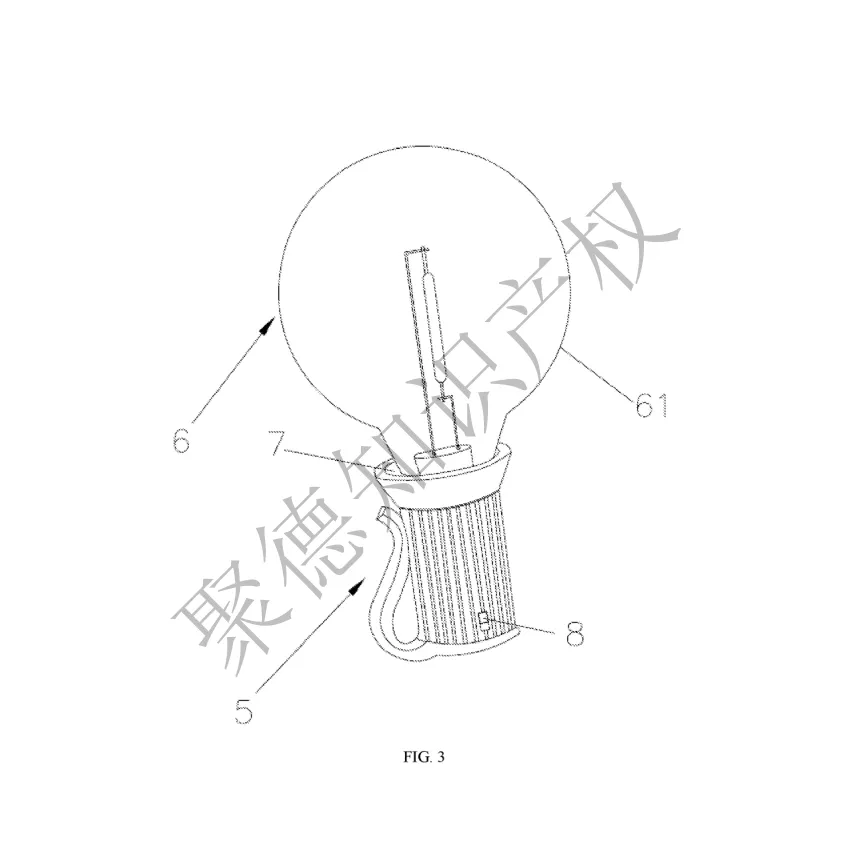

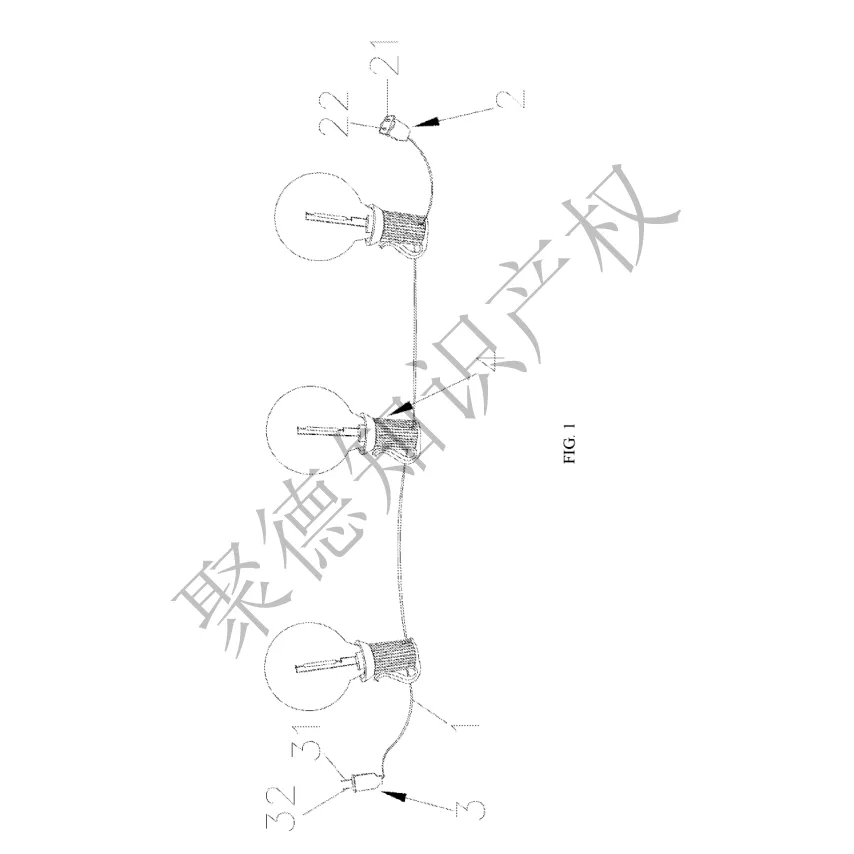

1. A waterproof and shatterproof light string, comprising an electric wire, wherein, a female socket is arranged at one end of the electric wire, a male plug capable of being plugged into and electrically connected with the female socket is arranged at the other end of the electric wire, and a plurality of lamps are arranged in the middle of the electric wire in parallel; each lamp comprises a lamp holder and a bulb connected with the lamp holder, and a gap is arranged between the lamp holder and the bulb, wherein the gap is a circumferential gap that is defined between the lamp holder and the bulb and that surrounds the bulb when the bulb is fitted inside the lamp holder; a water discharge port is defined in one side of the lamp holder; and the bulb comprises a shatterproof plastic bulb shell; wherein the gap is configured to lead water that comes inside the lamp holder to the water discharge port to be drained.

权利要求1

1.一种防水防摔的灯串，包括电线(1)，其特征在于：

所述电线(1)的一端设置有母座(2)，电线(1)的另一端设置有可与母座(2)插合电性连接的公插头(3)，电线(1)的中部并联设置有多个灯具(4)；所述灯具(4)包括灯座(5)和与灯座(5)连接的灯泡(6)，灯座(5)与灯泡(6)间设置有间隙(7)；其中所述间隙（7）是在所述灯座(5)和所述灯泡(6)之间限定的周向间隙，并且当所述灯泡(6)装配在所述灯座(5)内部时所述周向间隙围绕所述灯泡(6)；所述灯座(5)一侧设置有排水口(8)；所述灯泡(6)包括防摔塑胶泡壳(61)，其中，所述间隙（7）被构造为将进入所述灯座(5)内部的水引导到所述排水口(8)以被排出。
