火热旺季必备之烧烤架，这款烧烤架有发明专利

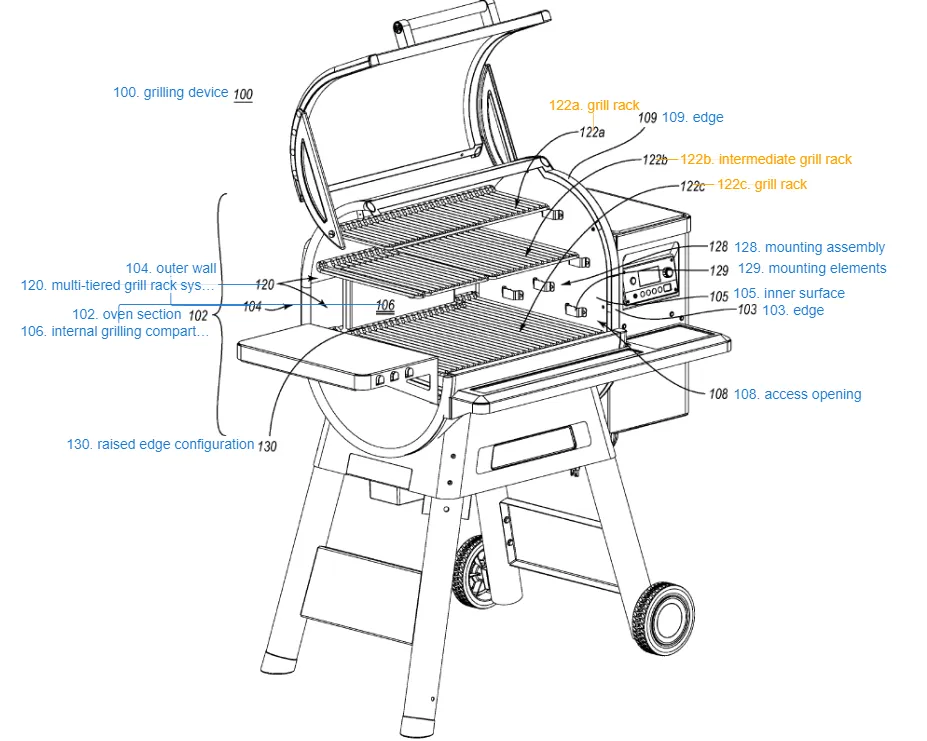

1. A grilling device, comprising: an oven section comprising an outer wall at least partially defining an internal grilling compartment, the outer wall comprising: two opposing sidewalls having elongated oval shapes; and an encircling body wall extending between the two opposing sidewalls, the two opposing sidewalls and the encircling body wall defining an access opening; a lid mounted to the two opposing sidewalls and having an inner surface having an overall curvature at least substantially matching portions of outer peripheral edges of the two opposing sidewalls defining the access opening, wherein the inner surface is configured to abut against and form a seal with the at least substantially matching portions of outer peripheral edges of the two opposing sidewalls; and a grill rack system disposed in the internal grilling compartment, the grill rack system comprising at least three grill racks and a plurality of grill rack mounting elements for supporting the grill racks within the internal grilling compartment.

1.烧烤装置, 包括：

烤箱部分，包括至少部分地限定内部烧烤隔间的外壁，所述外壁包括：两个相对的侧壁，具有细长的椭圆形形状；环绕体壁在两个相对的侧壁之间延伸,两个相对的侧壁和环绕体壁限定出入口。

盖子，安装到两个相对的侧壁并具有内表面,该内表面具有至少基本匹配限定出入口的两个相对侧壁的外周边缘的部分的总曲率，其中内表面被配置为抵靠并形成密封两个相对侧壁的外周边缘的至少基本匹配的部分；以及设置在内部烧烤室内的烤架系统,该烤架系统包括至少三个烤架和多个用于支撑内部烧烤室内的烤架的烤架安装元件。

12. A grilling device, comprising:an oven section comprising an outer wall at least partially defining an internal grilling compartment, the outer wall having opposing: a first sidewall having an elongated oval shape; a second opposing sidewall having an elongated oval shape; and an encircling body wall extending between the first sidewall and the second opposing sidewall, the first sidewall, the second opposing sidewall, and the encircling body wall defining an access opening; a lid mounted to the first sidewall and the second opposing sidewall of the outer wall and having an inner surface having an overall curvature at least substantially matching portions of outer peripheral edges of the first sidewall and the second opposing sidewall defining the access opening, wherein the inner surface is configured to abut against and form a seal with the at least substantially matching portions of outer peripheral edges of the first sidewall and the second opposing sidewall, and wherein the lid is actuatable between a closed position in which the lid covers the access opening and an open position in which the access opening is uncovered; and a grill rack system disposed in the internal grilling compartment, the grill rack system comprising at least three grill racks and a plurality of grill rack mounting elements for supporting the grill racks within the internal grilling compartment.

12.烧烤装置，包括：

烤箱部分，包括至少部分地限定内部烧烤隔间的外壁，所述外壁具有相对的：第一侧壁,具有细长的椭圆形形状；具有细长椭圆形状的第二相对侧壁；环绕体壁在第一侧壁和第二相对侧壁之间延伸，第一侧壁、第二相对侧壁和环绕体壁限定出入口；盖子，安装到外壁的第一侧壁和第二相对侧壁并且具有内表面。

该内表面具有至少基本匹配限定进入开口的第一侧壁和第二相对侧壁的外周边缘的部分的总曲率，其中内表面构造成抵靠第一侧壁和第二相对侧壁的外周边缘的至少基本上匹配的部分并与它们形成密封，并且其中盖子可在盖子覆盖进入开口的关闭位置之间致动以及打开位置,在该打开位置上，访问开口未被覆盖；以及设置在内部烧烤室内的烤架系统，该烤架系统包括至少三个烤架和多个用于将烤架支撑在内部烧烤室内的烤架安装元件。

16. A grilling device, comprising:an oven section comprising an outer wall at least partially defining an internal grilling compartment, the outer wall comprising: opposing first and second sidewalls having elongated oval shapes, each of the first and second sidewalls defining an upper apex and a lower arcuate edge having a lowermost point, wherein the upper apex and lowermost point are at least substantially aligned on a vertical axis; and an encircling body wall extending between the first and second sidewalls, the first and second sidewalls and the encircling body wall defining an access opening; a lid mounted to the first and second sidewalls at a location offset from the vertical axis extending between the upper apex and lowermost point of the lower arcuate edge of each of the first and second sidewalls, the lid being actuatable between a closed position in which the lid covers the access opening and an open position in which the access opening is uncovered; a handle attached to the lid, wherein an inner surface is configured to abut against and form a seal with at least substantially matching portions of outer peripheral edges of the opposing first and second sidewalls; anda grill rack system, comprising:a plurality of grill racks disposed in the internal grilling compartment, the plurality of grill racks comprising: a first grill rack having a first depth; a second grill rack disposed above the first grill rack and having a second depth, the second depth being smaller than the first depth; and a third grill rack disposed above the second grill rack and having a third depth, the third depth being smaller than the second depth; and a plurality of grill rack mounting elements for supporting the plurality of grill racks in a vertically spaced configuration, the plurality of grill rack mounting elements connected to inner surfaces of the first and second sidewalls of the outer wall.

16.烧烤装置，包括：

烤箱部分包括至少部分地限定内部烧烤隔间的外壁，所述外壁包括：相对的具有细长椭圆形的第一和第二侧壁，所述第一和第二侧壁中的每一个限定上顶点和具有最下部的弧形下边缘点，其中上顶点和最低点在垂直轴上至少基本对齐。

环绕体壁在第一和第二侧壁之间延伸，第一和第二侧壁和环绕体壁限定出入口；盖安装到第一和第二侧壁的位置偏离垂直轴线，该垂直轴线在第一和第二侧壁中的每一个的下弧形边缘的上顶点和最低点之间延伸，该盖可在关闭位置之间致动，在该关闭位置中，盖子盖住存取开口和存取开口未被覆盖的打开位置；把手附接到盖子，其中内表面构造成抵靠并与相对的第一和第二侧壁的外周边缘的至少基本匹配的部分形成密封；烤架系统，包括：多个烤架,设置在内部烧烤隔间中。

所述多个烤架包括：具有第一深度的第一烤架；第二烤架,设置于第一烤架上方且具有第二深度，第二深度小于第一深度；第三烤架,设置于第二烤架上方且具有第三深度,第三深度小于第二深度；多个烤架安装元件，用于将多个烤架支撑成竖直间隔的配置，多个烤架安装元件连接到外壁的第一和第二侧壁的内表面。
